BALUSTRADA SAMONOŚNA
GUARD W

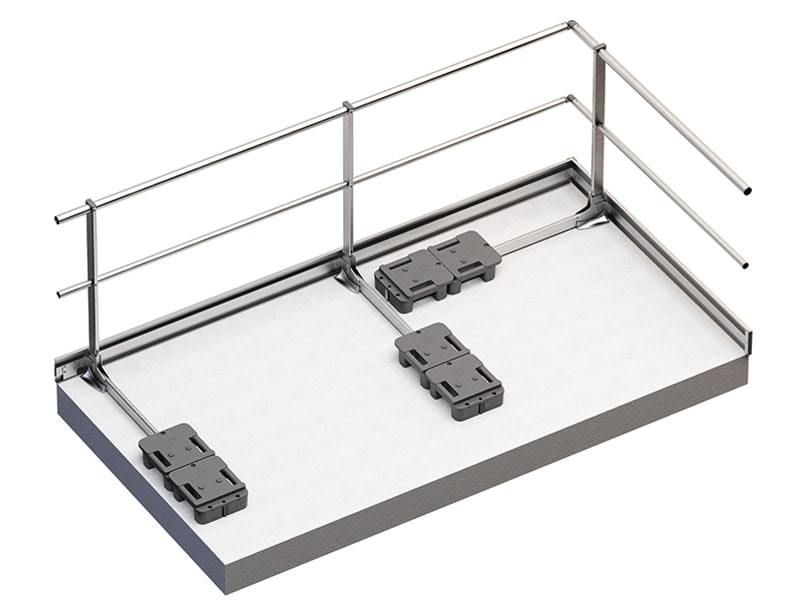

GUARD W to balustrada samonośna, która dzięki dołączonym balastom pokrytym tworzywem sztucznym nie wymaga wiercenia w konstrukcji w celu montażu, co pozwala zachować warstwę uszczelniającą. Ergonomiczne balasty ułatwiają instalację i transport, a montaż jest szybki i łatwy.
Elementy mocowane są na połączenia wpustowe za pomocą wkrętów samowiercących, które są dołączone do zestawu. Balustrada wykonana ze stopu aluminium jest wyjątkowo lekka.
GUARD W, balustrada samonośna, która zachowuje warstwę uszczelniającą.
Dokumentacja
Karta techniczna
|
|---|
Instrukcje montażu
| Installation manual |
|---|
HANDRAILS AND INTERMEDIATE RAILS - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
UPRIGHTS - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110 | straight upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
TOE BOARD AND ACCESSORIES - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
| RBGTBW | support for toe board H = 150 mm for GUARD W | 1 |
STANDARD BASES - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGBASEW | base for self-supporting GUARD W straight with support leg | 1 |
| RBGBASEWE | locking wedge for GUARD W (spare part) | 1 |
| RBGWEIGHT | plastic counterweight 12,5 kg for GUARD W | 1 |
| RBGBASEWI | base for self-supporting GUARD W inclined with support leg | 1 |
| RBGBASEWIFCR | support leg for 25° right-hand bend inclined strut | 1 |
| RBGBASEWIFCL | support leg for 25° left-hand bend inclined strut | 1 |
ACCESSORIES
| CODE | description | pcs. |
|---|---|---|
| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
FASTENING SCREWS - GUARD W
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR4850 | stainless steel self-drilling screw 4,8 x 50 mm | 25 |
| RBGBASEWFKIT | kit for joining RBGBASEWF and RBGBASEWFR / RBGBASEWFL | 1 |
KIT CANCELLETTI DI SICUREZZA
| CODE | description | pcs. |
|---|---|---|
| RBGGATEWISUP | support for inclined strut gate | 1 |
| RBGGATE600 | safety door 500 mm height with hinges assembled L = 600 mm | 1 |
| RBGGATE1100 | safety door 500 mm height with hinges width L = 1100 mm | 1 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
