BALUSTRADA Z MOCOWANIEM PIONOWYM I PIONOWYM ROZSTAWIONYM
GUARD V | GUARD VD
Balustrada GUARD V i GUARD VD przeznaczone są do montażu na konstrukcjach pionowych.

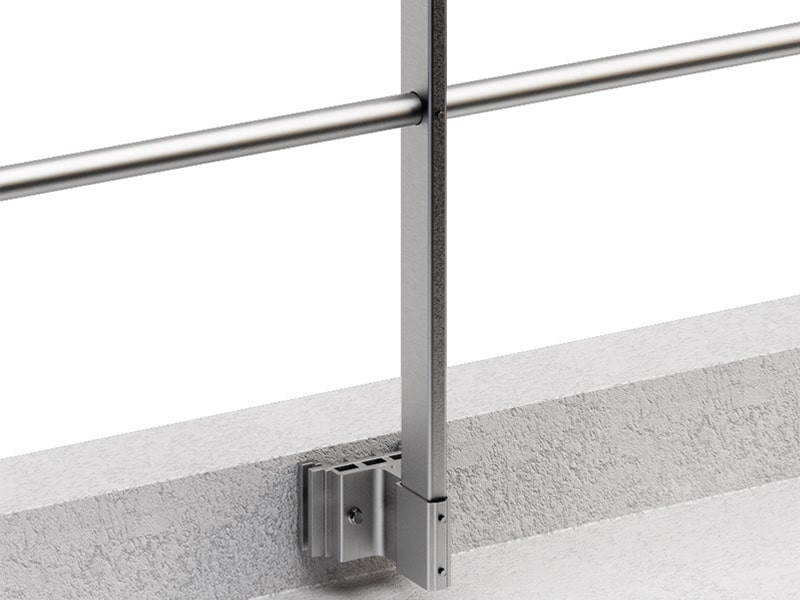

Montaż jest szybki i łatwy. Podczas instalacji słupki można oddalić od ściany, na której są montowane, za pomocą podkładek aluminiowych. Elementy mocowane są na połączenia wpustowe za pomocą wkrętów samowiercących, które są dołączone do zestawu. Wersja GUARD VD zawiera płytę podstawy do montażu na ścianie, która wystaje na 6 centymetrów.

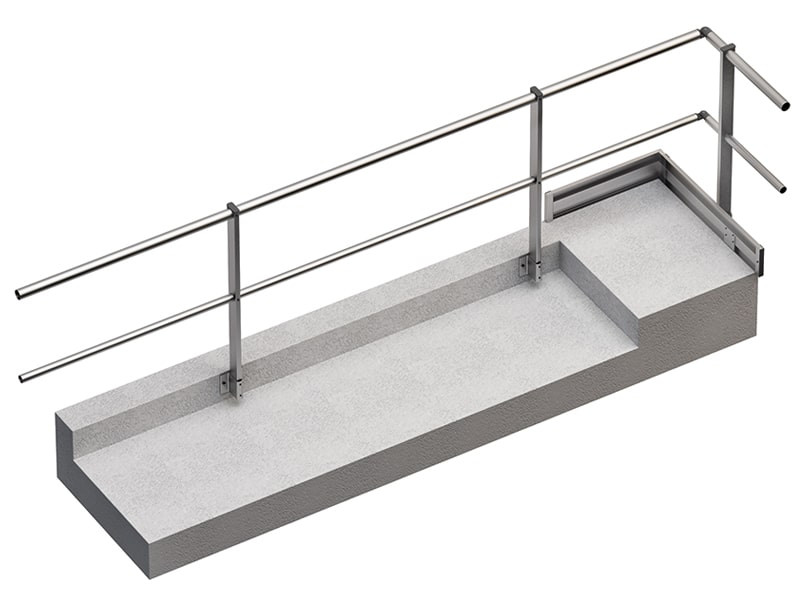

GUARD V i GUARD VD, balustrady do mocowania pionowego i pionowego odsadzonego.
Dokumentacja
Karta techniczna
|
|---|
Instrukcje montażu
| Installation manual |
|---|
HANDRAILS AND INTERMEDIATE RAILS
| CODE | description | pcs. |
|---|---|---|
| RBGBAR45 | Ø45 mm handrail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGBAR35 | Ø35 intermediate rail with flush-mounted ring nuts L = 3000 mm | 1 |
| RBGCAP | - | 1 |
UPRIGHTS - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGSUP118 | straight upright H = 1182 mm groove Ø45 mm | 1 |
| RBGSUP130 | straight upright H = 1300 mm groove Ø45 mm | 1 |
| RBGSUP115I | inclined upright H = 1157 mm groove Ø45 mm | 1 |
TOE BOARD AND ACCESSORIES - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGTB | toe board 3000 x 150 x 19 mm | 1 |
| RBGTBJUN | - | 1 |
| RBGTBCOR | - | 1 |
| RBGTBCAP | - | 1 |
STANDARD BASES - GUARD V/GUARD VD
| CODE | version | pcs. |
|---|---|---|
| RBGBASEV | - | 1 |
| RBGBASEVD | - | 1 |
| RBGDIST | - | 1 |
ACCESSORIES
| CODE | description | pcs. |
|---|---|---|

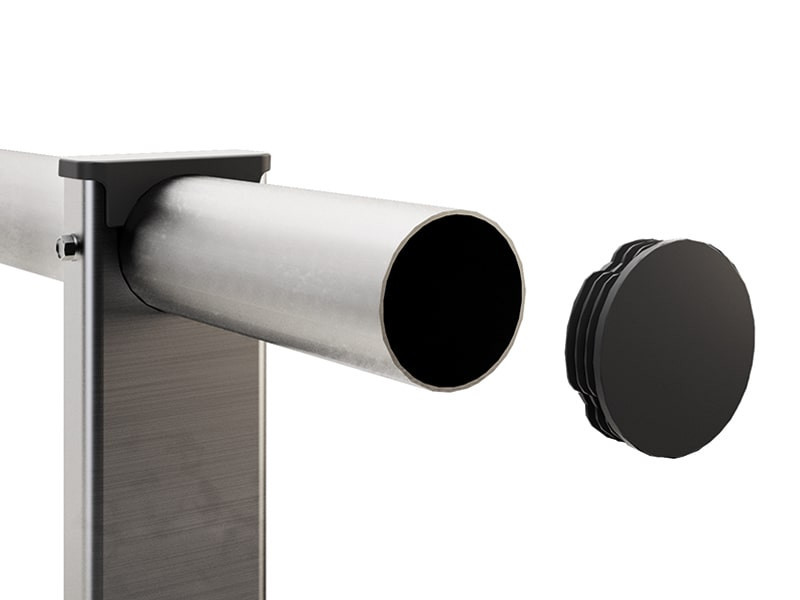

| RBGCAP45 | cap for handrail Ø45 mm | 1 |
| RBGCAP35 | cap for intermediate rail Ø35 mm | 1 |
| RBGCOR45 | - | 1 |
| RBGCOR35 | angle bracket for intermediate rail Ø35 mm | 1 |
| RBGCORAL | - | 1 |
| RBGBASEHKIT | waterproofing kit for GUARD H base | 1 |
| RBGWALL45 | end element for handrail Ø45 mm | 1 |
| RBGWALL35 | end element for intermediate rail Ø35 mm | 1 |
| RBGWALLAL | aluminium end element for handrail and intermediate rail | 1 |
FASTENING SCREWS - GUARD V/GUARD VD
| CODE | description | pcs. |
|---|---|---|
| RBGSCR4816 | stainless steel self-drilling screw 4,8 x 16 mm | 25 |
| RBGSCR4825 | stainless steel self-drilling screw 4,8 x 25 mm | 25 |
| RBGSCR4832 | stainless steel self-drilling screw 4,8 x 32 mm | 25 |
SISTEMA RECLINABILE
| CODE | description | pcs. |
|---|---|---|
| RBGSUP110F | pull-down upright H = 1105 mm groove Ø45 mm | 1 |
| RBGSUP100F | pull-down upright H = 1010 mm groove Ø45 mm | 1 |
| RBGBAR45F | handrail without flush-mounted ring nuts Ø45 mm L = 3000 mm | 1 |
| RBGBAR35F | handrail without flush-mounted ring nuts Ø35 mm L = 3000 mm | 1 |
